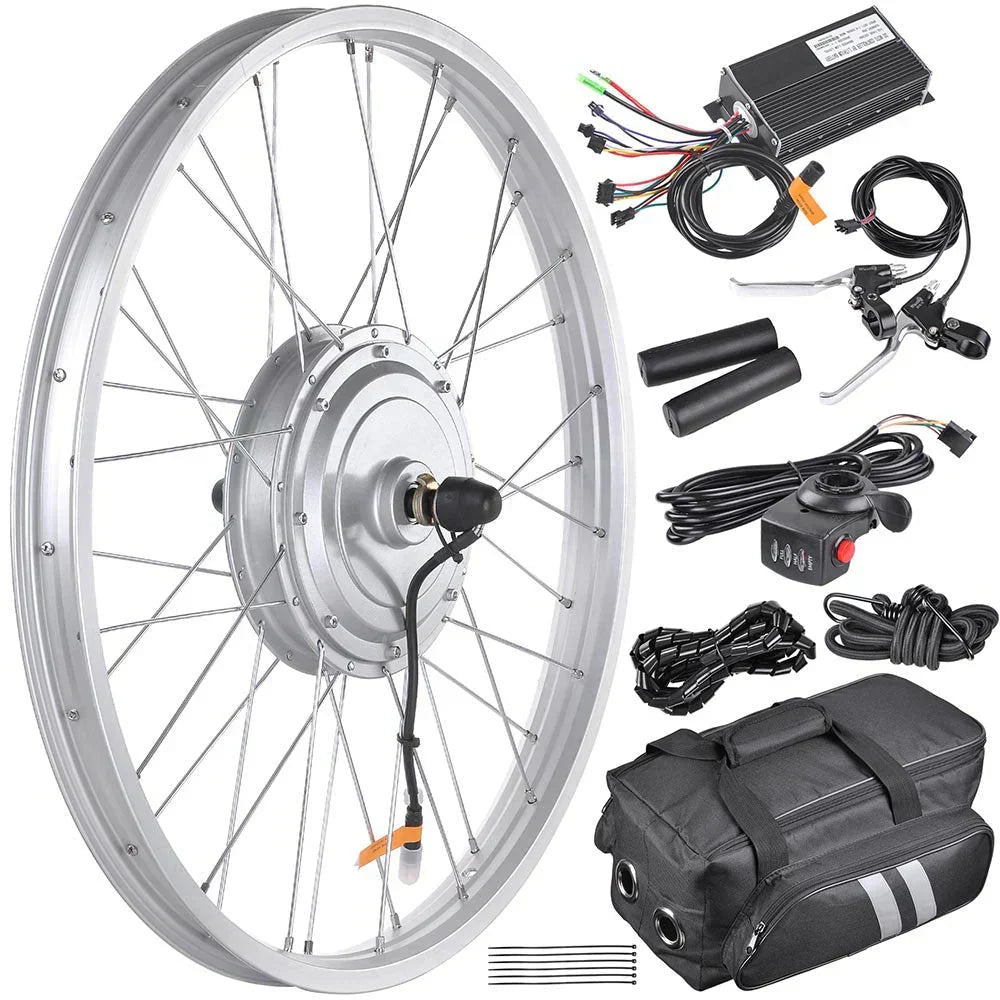

24 Inch E-Bike Hub Motor Front Conversion Kit includes 24 inch front motorized wheel. 36v 750w brushless hub motor. speed throttle. power break lever. wire harness. can be installed disc brakes. matched 180MM disc brakes.
FEATURES
- 24″ Electric Bicycle Front Wheel (Not include tire & battery)
- Suitable Tire Size – 24″ x 1.75″ to 2.1″ (a tire that is 24″ in outer diameter and 1.75″ to 2.1″ in width)
- E-bike Conversion Kit – easy to convert your bike to an electric powered scooter/moped
- 750W powerful brushless gearless hub motor with 25 km/h top speed
- The brake shuts off motor automatically – saves energy and improves safety
- Aluminum rim for strong support & rust resistance
- Thumb throttle with 3 LED battery indicator lights
SPECIFICATIONS
- Wheel Outer Diameter: 24″ (61 cm)
- Hub Length: 6 7/8″ (17.5 cm)
- Hub Spacing: 4″ (10 cm)
- Rim Width: 1 9/16″ (4 cm)
- Suitable Tire Size: 24″ in outer diameter & 1.75″ to 2.1″ in width
- Motor: 36V. 750W
- Suitable battery type and parameters: 36V. 25 Ah. travel about 20km;Recommended capacity is at least 8.8AH or above.
PACKAGE INCLUDES
- 1x Replacement Front Wheel (Tire Not Included)
- 1x Motor
- 1x Electric Controller
- 2x Brake Pullers
- 1x Thumb Throttle
- 2x Grips
- 1x Carrying Bag
- 1x Rope (color will pick at random)
- 1 Set of Winding Pipes/Zip Ties
- 1x Manual
NOTICE
- We recommend to use 36V 25ah Battery and Charger are Not included.
- Must to wear a helmet before riding this electric bicycle for protection.
- Please go to those automobile repair shop with standard business license for modification.
- For safety reasons. it is not recommended to use in rainy days
- It is only suitable for bicycle/mountain bike/BMX. not tricycles. tractors. etc;
- If you have any question about the compatible Model. please contact our Customer Service before purchasing.
